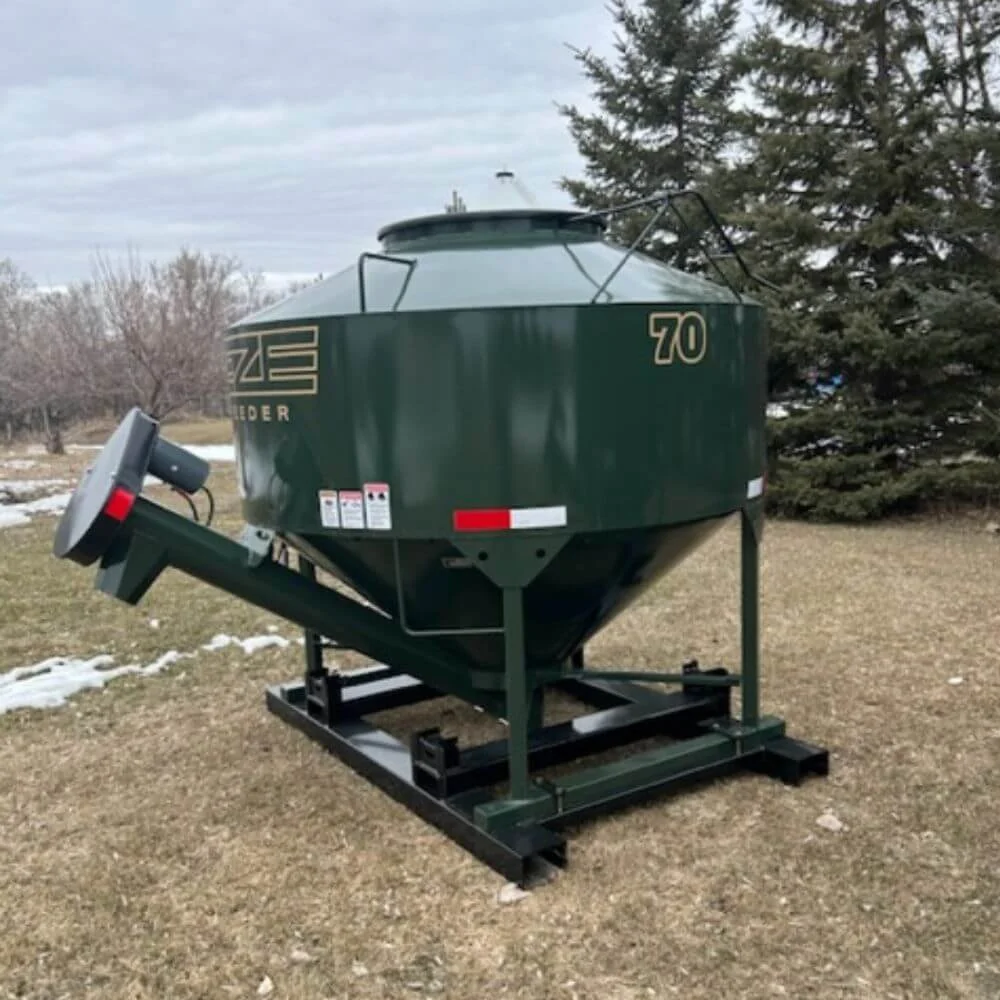

MODEL E70
12 VOLT OR HYDRAULIC AUGER DRIVE MODELS
70 BUSHEL
93 Cubit Feet
BIN SPECIFICATIONS:
Tank Diameter: 72”
Overall Height: 74” **
Bottom Cone Slope: 40°
Loaded Weight: 1.76 Ton*
Based On: * 40lbs per cu. ft. **Standard skid frame model (no trailer or scale)EZE-FEEDER STANDARD FEATURES
EZE-FEEDERS COME EQUIPPED WITH THESE FUNCTIONAL FEATURES.
EZE-FEEDER IS DESIGNED FOR BUNK OR PASTURE FEEDING YOUR LIVESTOCK.
☑ FUNCTIONAL DESIGN
EZE-FEEDER’S rounded shape is purposeful. No corners means better flow and helps with bridging and build up. You get a consistent clean-out on almost all feed types.

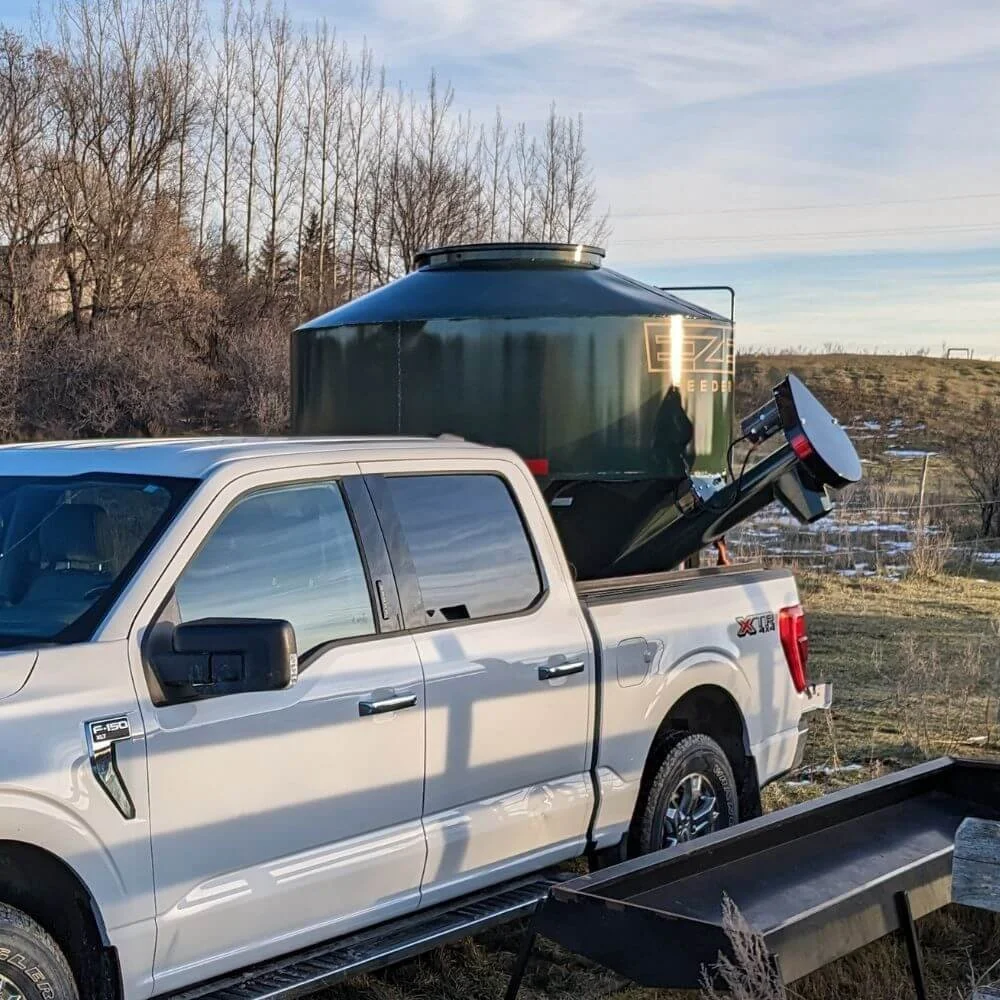

☑ PICK-UP BED READY
Heading out to feed your animals with your truck is a breeze with EZE-FEEDER. The skid frame is sized to fit most truck beds and we’ve added built in brackets for your tie downs so set up is simple.
☑ HANDLES VARIOUS FEEDS
EZE-FEEDER is designed for use in many farming environments and works well with most types of dry bulk commodities, including grain, pellets, cubes, screenings and many other types of feed.
☑ FORK SLOTS ON SKID FRAME
An upgraded design for 2024 includes built in fork slots on all skid mount frames. We know how important it is to quickly move a unit about, these fork pockets improve movability.
☑ DURABLE EXTERIOR
The 2-part exterior epoxy coating base is covered with an olive green urethane topcoat to ensure that EZE-FEEDER stands the test of time in our harsh North American Climate.
☑ EPOXY INTERIOR FINISH
EZE-FEEDER has a 2-part epoxy coated interior which make it safe for all feeds and meets food grade standards. This coating protects the metal from high-salt supplements as well.
☑ SPEEDY UNLOAD
You want to get things done! EZE-FEEDER has an unloading speed of 12.5 bushels per minute.
☑ BOTTOM CLEANOUT
EZE-FEEDER is built with farmers and ranchers in mind, and we know that a bottom auger clean out makes things easier.
☑ 30” LOW PROFILE LID
A wide opening with a simple, effective manually operated low profile lid that easily moves out of the way for you to work.
☑ 6'' DISCHARGE AUGER
EZE-FEEDER has a standard powerful 6” auger that can be ordered either 12 Volt or Hydraulic drive.
☑ ENERGY EFFICIENT MOTOR
12V energy efficient motor puts less strain on your vehicle’s charging system.
☑ 22” WIRING HARNESS
A longer length cord to accommodate today’s bigger trucks.
E70 MODELS
MODELS COME WITH ALL STANDARD FEATURES AND ARE EQUIPPED WITH ADDITIONAL OPTIONS AS LISTED BELOW. YOU CAN ALSO CUSTOM ORDER A UNIT TO SUIT YOUR NEEDS.
12 VOLT MODELS
MODEL: E7012
◻ Discharge Auger (12V)
MODEL: E7012L
◻ Discharge Auger (12V)
◻ Remote Lid
MODEL: E7012FA
◻ Discharge Auger (12V)
◻ Folding Auger
MODEL: E7012M
◻ Discharge Auger (12V)
◻ Mixing Auger (12v)
MODEL: E7012ML
◻ Discharge Auger (12V)
◻ Remote Lid
◻ Mixing Auger (12v)
MODEL: E7012HSL
◻ Hydra-Deck / Bale-Deck
◻ Discharge Auger (12V)
◻ Standard Lid
MODEL: E7012HL
◻ Hydra-Deck / Bale-Deck
◻ Discharge Auger (12V)
◻ Remote Lid
MODEL: E7012HMSL
◻ Hydra-Deck / Bale-Deck
◻ Discharge Auger (12V)
◻ Mixing Auger (12v)
◻ Standard Lid
MODEL: E7012HML
◻ Hydra-Deck / Bale-Deck
◻ Discharge Auger (12V)
◻ Mixing Auger (12v)
◻ Remote Lid
HYDRAULIC MODELS
MODEL: E70H
◻ Discharge Auger (Hyd)
MODEL: E70HL
◻ Discharge Auger (Hyd)
◻ Remote Lid
MODEL: E70HM
◻ Discharge Auger (Hyd)
◻ Mixing Auger (Hyd. Orbit Drive)
MODEL: E70HML
◻ Discharge Auger (Hyd)
◻ Mixing Auger (Hyd. Orbit Drive)
◻ Remote Lid
HYDRAULIC HOSES INCLUDED
CUSTOMIZE
EZE-FEEDER

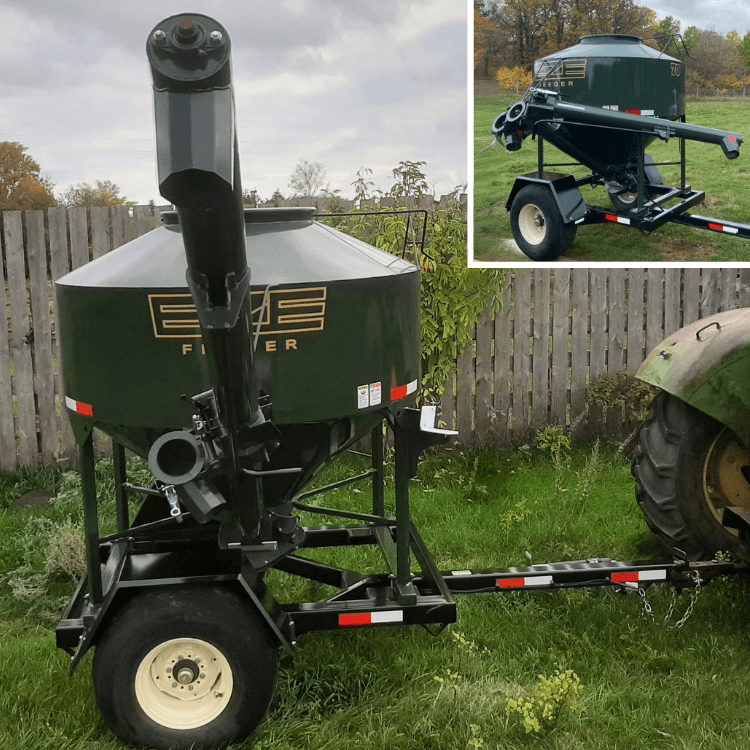

THE OPTIONAL 12’ FOLDING AUGER IS ON A HINGE THAT SWINGS BACK TO QUICKLY SWITCH TO SHORT SPOUT.
MANY OPTIONS AVAILABLE TO CUSTOMIZE A UNIT TO YOUR REQUIREMENTS.
A HANDY OPTION FOR VERSATILITY AROUND THE FARM.
EZE-FEEDER OPTIONS
THE FOLLOWING OPTIONS ARE AVAILABE FOR THE E70 MODEL
-
12' FOLDING AUGER
-
DIGITAL SCALE
-
SIGHT GLASS
-
DEEP CYCLE BAT & BOX
-
HEAVY DUTY TRAILER
-
SPOUT EXTENSION
-
REMOTE LID
-
3 PTH FRAME
-
VERTICAL MIXING AUGER
PURCHASE
EZE-FEEDER
EZE-FEEDERS ARE SOLD BY AUTHORIZED DEALERS ACROSS CANADA AND THE U.S.A.
MANY CANADAIN RURAL CUSTOMERS PURCHASE EZE-FEEDER AT THEIR LOCAL CO-OP AGRO OR HOME CENTRE.
